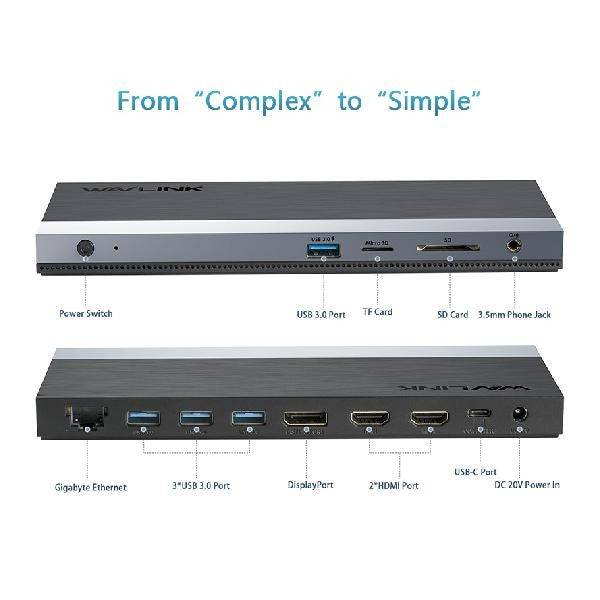

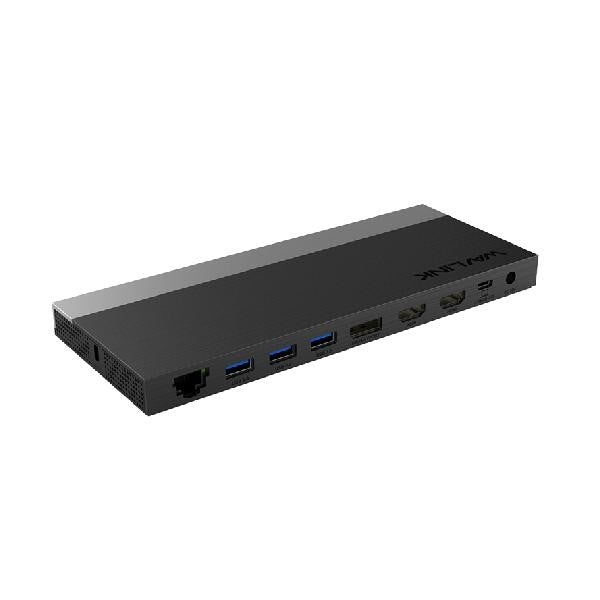

USB-C Triple Display MST Docking Station has 2xDisplayPort (DP1.4) and 1xHDMI (HDMI 2.0), compatible with USB C with 'DisplayPort Alternate mode' (Alt Mode) or Thunderbolt 3/4 port on PC, connecting up to 3 monitors. Gigabit Ethernet connection, 3.5mm headphone and microphone jacks, multiple USB ports, bring you the excellent versatility and increasing productivity. The product suits you well in multiple-monitor scenarios such as meetings, classrooms, stock chart analysis, programming, designing etc.

Features:
1) One HDMI(HDMI2.0) and two DP(DP1.4) , supports up to dual 4K@60Hz (HBR3, DP1.4) or triple displays.
2) Supports USB Power delivery up to 65W upstream charging to laptop
3) SD V3.0 /Micro SD Card Reader slot data transfer speed up to 104MB/s
4) Four USB 3.0 A port support up to 5Gbps with one port support BC1.2 fast charging, and One USB3.1 Gen2
5) Ethernet port supports up to 1 Gbps (10/100/1000 Mbps)
6) One combo Audio/Mic port
7) Compatible with PC with an available USB-C with ‘DisplayPort Alternate mode’(Alt Mode) or Thunderbolt 3/4 port
8) Driver-free Plug and Play
9) Special decent design with plastic and metal matching

Specification :
Model : WL-UMD05

Connection To Host : 1x USB-C to USB-C 1m cable(E-mark)

Plug & Play : Driver-free Plug and Play

Power Delivery : Supports USB Power delivery up to 65W

USB Port : 4 x USB 3.0 A port speed up to 5Gbps (front A port supports BC1.2 fast charging)

Video Outputs :
1 monitor:DisplayPort (DP1.4):
Resolution up to 4K@60Hz (HBR3,DP1.4)
HDMI (HDMI 2.0): Resolution up to 4K@60Hz (HBR3,DP1.4)

2 monitors :Dual HDMI (HDMI 2.0):
Resolution up to 4K@60Hz (HBR3,DP1.4)
DisplayPort (DP1.4) + HDMI (HDMI 2.0): Resolution up to 4K@60Hz (HBR3,DP1.4)

Triple monitors (simultaneously):
HDMI 1: Resolution up to 1080P@60Hz
HDMI 2: Resolution up to 1080P @60Hz
DisplayPort: Resolution up to 1080P @60Hz

LED : 1 x Power LED

Audio : Integrated TRRS 4-pole phone jack

Card Reader : SD V3.0 /Micro SD Card Reader slot data transfer speed up to 104MB/s

Ethernet Speed : 1x RJ45 10/100/1000Mbps Ethernet

Button : ON/OFF button to turn the docking station on and off

Power adapter :
1xDC20V Power Adapter（Brick style）
WL-UMD05: 100W

Operating System(s) :
Microsoft Windows 7 / 8 / 10/11
Apple Mac OS 10.8 or later

Material :Aluminum + ABS Plastic

Box Dimensions (WxDxH) : 26.8 x13.2 x 7.6 mm

Box Weight (g) : Approx 1244g

Box Weight (g) :
1 x USB-C Triple Display docking station
1x USB-C to USB-C 1m cable(E-mark)
1x Power Adapter
1x AC Power 1.5m Cable
1x Quick Start Guide

Warranty Period : 1 Years
Warranty Provided By : SOAON Holding Limited
